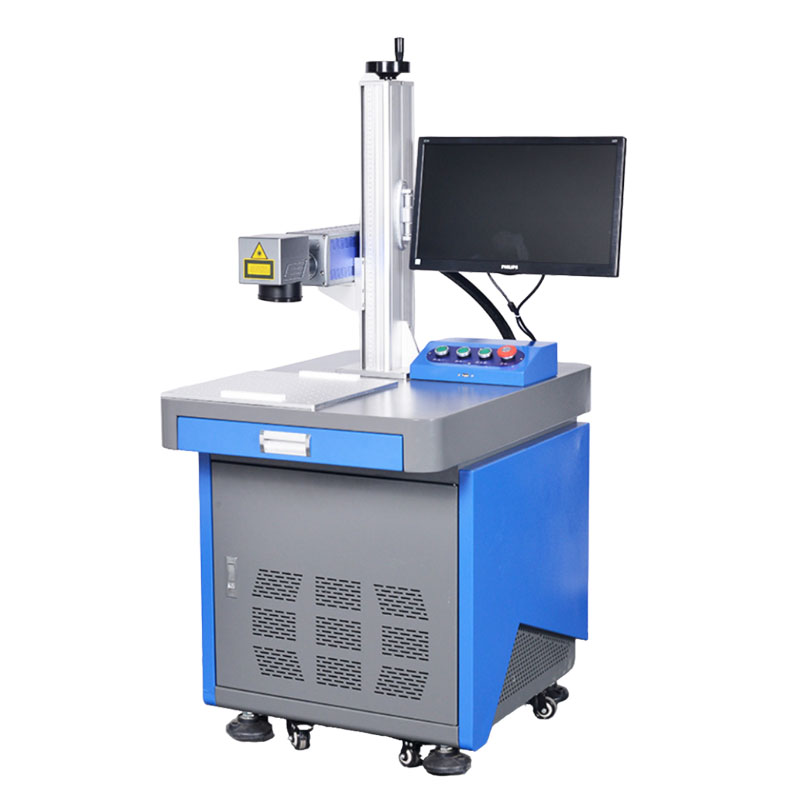

FR-30J Fiber Laser Marking Machine

Technical Parameters

Laser Source:  MAX / Raycus fiber laser

Laser Wavelength:  1064nm

Laser Power:  30W

Marking Range:  110mm*110mm

Preview Mode:  Border Preview / Graphic preview

Focal Length Guide:  Double red light focusing

Marking System:  JCZ laser marking control system

User Interface:  21-inch industrial computer

Power Supply:  100~240V / 50~60Hz AC

Laser Service Life:  20000 working hours

File Formats:  JPG、PNG、BMP, etc.

Cooling System:  Built-in air cooling

Working Condition:  -10°C - 45°C, Maximum 85% relative humidity, non-condensing

Print Content:  Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter

Net weight:  100Kg (Wooden box packaging)

Package Size:  650 mm x 320 mm x 1480 mm

Suitable Materials:  Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc.
