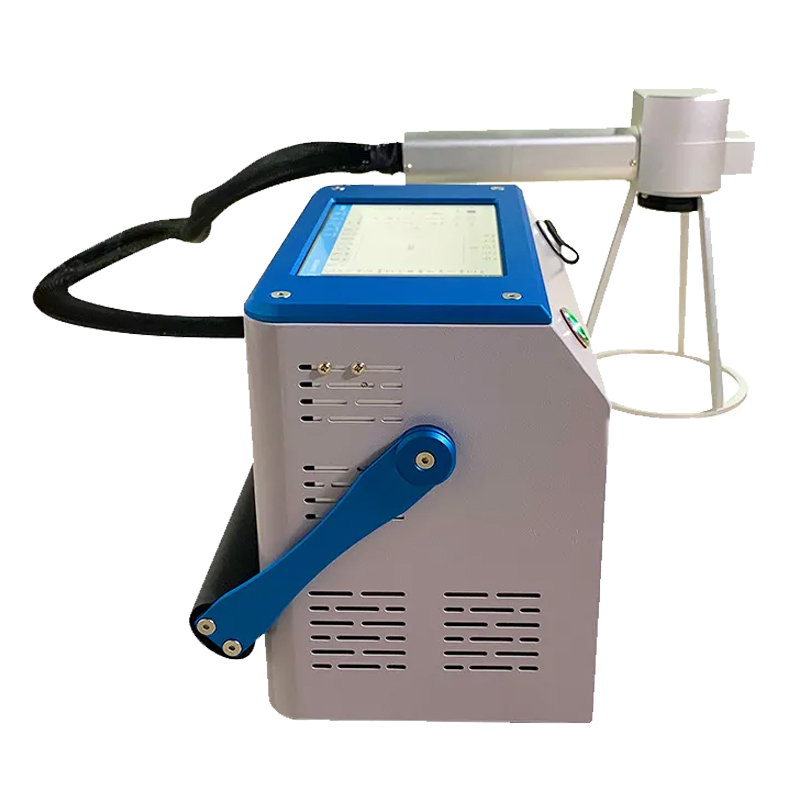

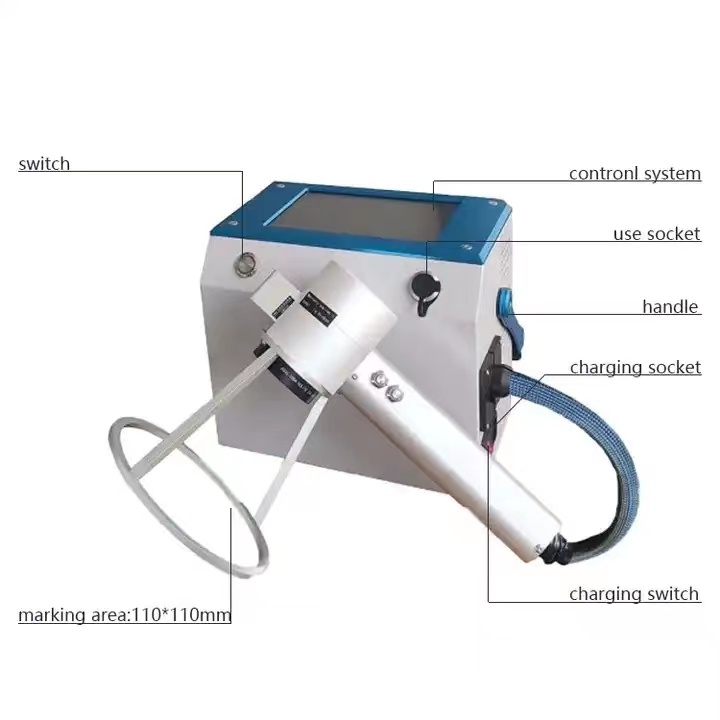

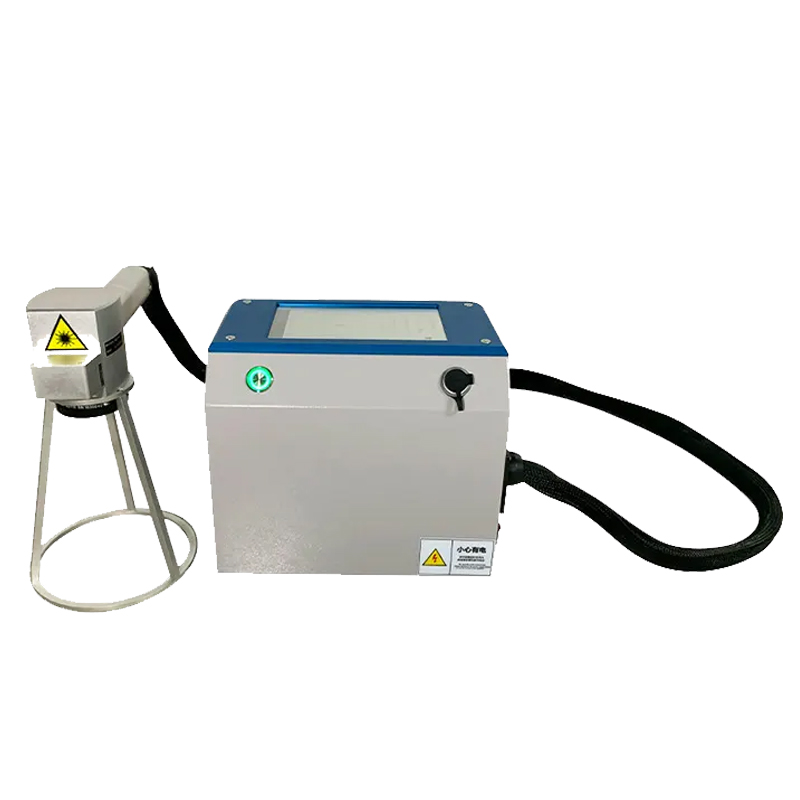

FR-30H Fiber Laser Marking Machine

Technical Parameters

Laser Source:  Raycus fiber laser source

Laser Wavelength:  1064nm

Laser Power:  30W

Marking Range:  110mm*110mm

Preview Mode:  Border Preview / Graphic preview

Focal Length Guide:  Double red light focusing

Operating System:  Embedded Linux Operating System

User Interface:  8-inch touch screen

Power Supply:  100~240V / 50~60Hz AC and built-in lithium battery

Laser Service Life:  20000 working hours

File Formats:  JPG、PNG、BMP, etc.

Cooling System:  Built-in air cooling

Working Condition:  10°C -40°C Maximum 95% relative humidity, non-condensing

Print Content:  Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter

Net weight:  10.8Kg / 12.0Kg(after packaging)

Package Size:  505 x 480 x 360 mm

Suitable Materials:  Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc.
