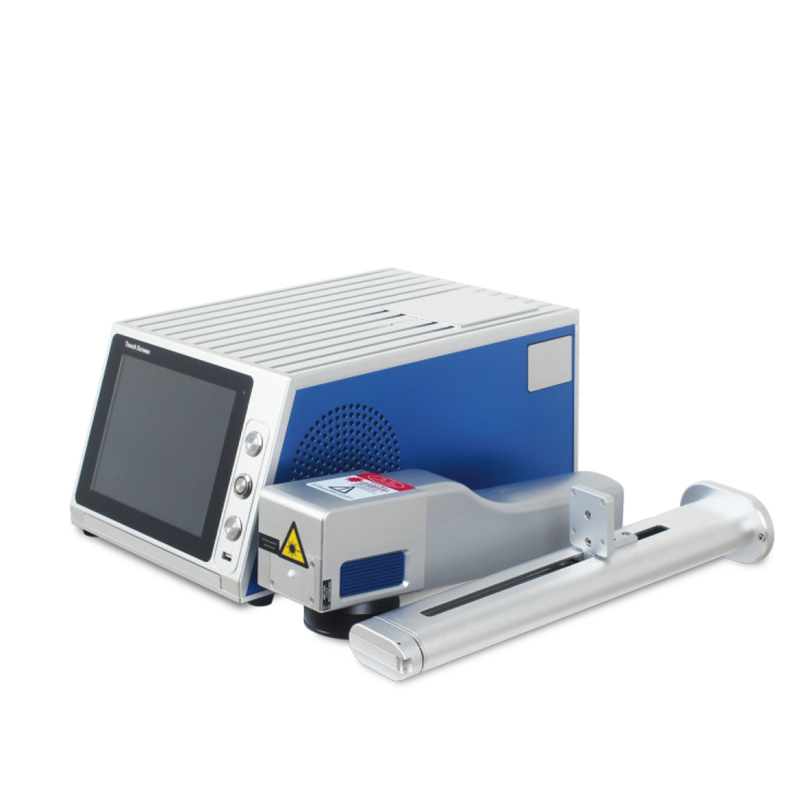

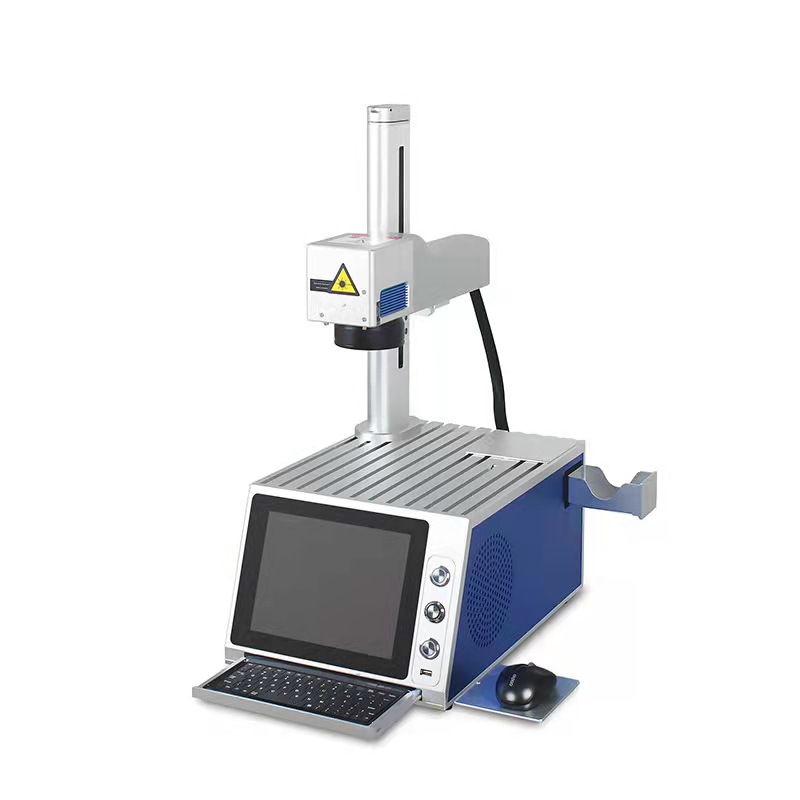

SF-20W Fiber Laser Marking Machine

Technical Parameters

Laser Source:  Raycus fiber laser source

Laser Source:  Raycus fiber laser source

Laser Wavelength:  1064nm

Laser Power:  20W

Marking Range:  100mm*100mm

Preview Mode:  Border Preview / Graphic preview

Focal Length Guide:  Double red light focusing

Operating System:  Windows operating system

User Interface:  15 inch external controller

Power Supply:  100~240V / 50~60Hz AC and built-in 24V lithium battery

Laser Service Life:  20000 working hours

File Formats:  JPG、PNG、BMP, etc.

Cooling System:  Air cooling

Working Condition:  0°C -40°C Maximum 85% relative humidity, non-condensing

Print Content:  Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter

Dimensions:  550mm x 440mm x 690 mm

Machine Weight:  25Kg

Suitable Materials:  Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc
